Bilstein 5100 Series 1976 Jeep CJ7 Base Front 46mm Monotube Shock Absorber Authentic

Original price was: $284.95.Current price is: $113.98.

SKU: SK1082729-US20260126-092757 Category: Tag:

Description

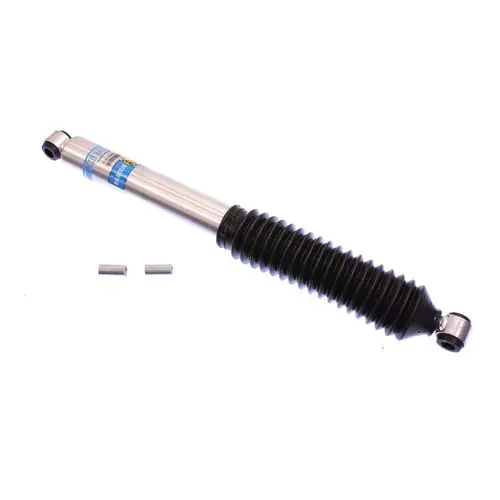

Bilstein – 33-185606

B8 5125 – Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Collapsed Length (MM): 359.0
Compression @0.52m/s: 700
Collapsed Length (IN) Rounded: 14
Boot Included: Black Bellows
Extended Length (IN): 22.58
Adjustable Damping: Non-Adjustable
Upper Mount Type: Eye 5/8in
Series: B8 5125
Body Diameter (ID): 46mm
Internal Design: Monotube
Body Design: Smooth Body (Non-Coilover)
Rebound @0.52m/s: 2550
Finish: Zinc Plated
Extended Length (MM): 573.5
Spring Seat Included: No
Collapsed Length (IN): 14.13
Mount Type: Eye-to-Eye
Reservoir: No
Extended Length (IN) Rounded: 23
Lower Mount Type: Eye 5/8in
