Edelbrock Sq Bore Heat Insulator Budget

Description

Manufacturer Part # : 9265

Market Description

The Edelbrock Square-bore Heat Insulator Gasket #9266 is designed to prevent percolation on Edelbrock Performer Series carburetors exposed to extreme under hood temperatures. This gasket features an open center which will allow open plenum Torker and Victor style manifolds to seal properly to the carburetor. Prior to installation, check air cleaner-to-hood clearance to ensure that additional height of heat insulator gasket will not cause interference. Remove air cleaner and all attachments to the carburetor such as fuel line, throttle linkage, and vacuum lines. Be sure to note the position or tag each piece to facilitate re-installation. Remove the carburetor and set it aside, then remove the old base gasket and any additional plates, such as Edelbrock square-bore adapter #2732. Remove the short carb studs and install the longer studs. Install the #9265 heat insulator gasket directly against the manifold, then replace the carb and all other connections. Note that gasket #9265 is rigid enough to replace square-bore adapter plate #2732, if required.

Product Description – Extended

• The Edelbrock Square-bore Heat Insulator Gasket #9265 is designed to prevent percolation on Edelbrock Performer Series carburetors exposed to extreme under hood temperatures.
• Heat Insulator Gasket for Open 4150 Square-Bore-0.320in. Thick

Key Search Words

Edelbrock; Gasket; Heat; Insulator; Carburetor; Carb; Installation; Replacement; Percolation; Performer Series; Thunder Series; AVS; AVS2; Square bore; Dual Quad

Label Description

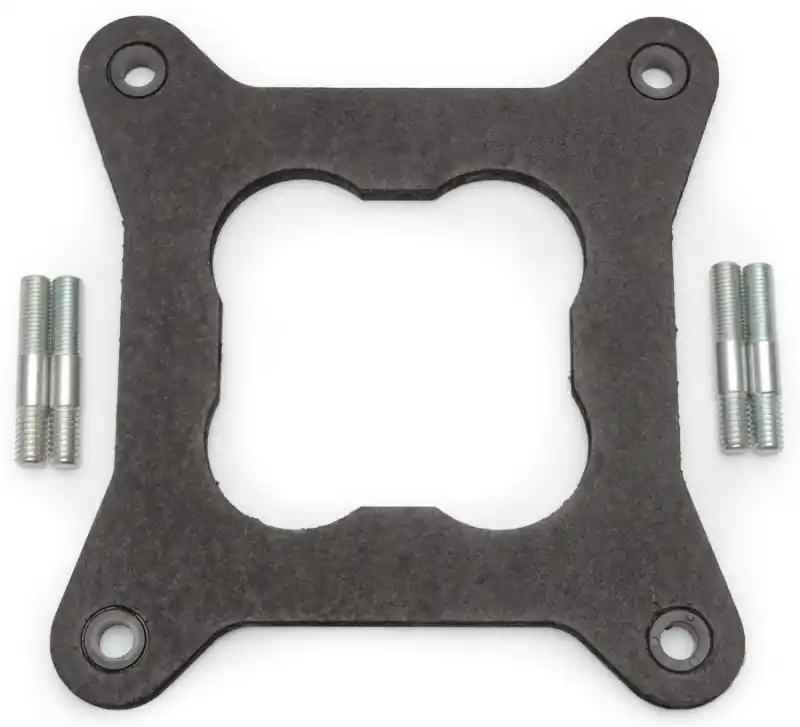

Carburetor Heat Insulator #9265 Square Bore

Product Description – Long

Carburetor Heat Insulator Gasket

Product Description – Short

• Edelbrock Sq Bore Heat Insulator
• KIT PARTS

Features and Benefits

Comes w/Extended Carb Studs

AAIA Part Type Description

Carburetor Heat Insulator

Product Description – Invoice

Sq Bore Heat Insulator

Product Description – Abbreviated

Carb Insulat
