Must Have Bilstein 5100 Series 02-09 Chevrolet Trailblazer Front 46mm Monotube Shock Absorber (Height Adj)
Home / Suspension / Must Have Bilstein 5100 Series 02-09 Chevrolet Trailblazer Front 46mm Monotube Shock Absorber (Height Adj)

Must Have Bilstein 5100 Series 02-09 Chevrolet Trailblazer Front 46mm Monotube Shock Absorber (Height Adj)

Original price was: $409.95.Current price is: $163.98.

SKU: SK1082717-US20260126-092757 Category: Tag:

Description

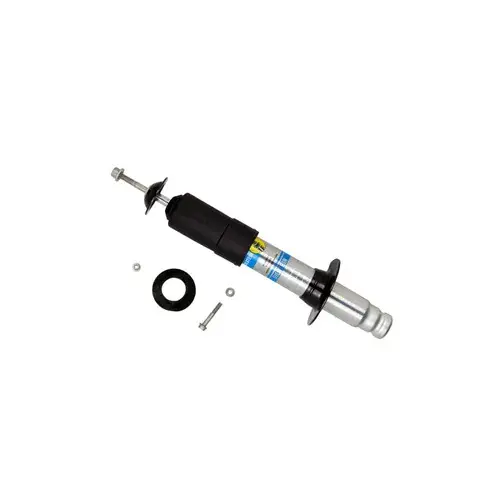

Bilstein – 24-267014

B8 5100 (Ride Height Adjustable) – Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Body Design: Snap Ring Grooved Body (Coilover)
Extended Length (IN): 16.41
Series: B8 5100 (Ride Height Adjustable)
Spring Seat Included: Yes
Upper Mount Type: Stem
Adjustable Damping: Non-Adjustable
Internal Design: Monotube
Body Diameter (ID): 46mm
Extended Length (MM): 416.9
Finish: Zinc Plated
Boot Included: Black Straight
Collapsed Length (MM): 286.1
Reservoir: No
Lower Mount Type: Base Cup
Collapsed Length (IN): 11.26
