Shop Now Bilstein 5100 Series 1987 Chevrolet Blazer Custom Deluxe Rear 46mm Monotube Shock Absorber

Original price was: $284.95.Current price is: $113.98.

SKU: SK1082733-US20260126-092757 Category: Tag:

Description

Bilstein – 33-185569

Shock – 5100 Series – Monotube – Steel – Zinc Plated – Rear – 6 in Lifted – GM Fullsize SUV / Truck 1975-91 – Each

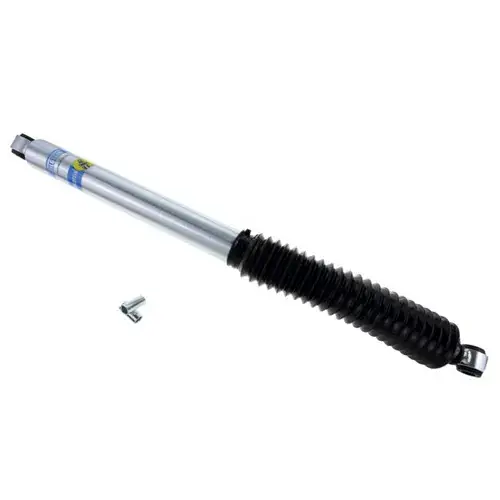

46mm Monotube Shock Absorber

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Spring Seat Included: No
Lower Mount Type: Eye 5/8in
Internal Design: Monotube
Adjustable Damping: Non-Adjustable
Compression @0.52m/s: 700
Collapsed Length (MM): 455.0
Upper Mount Type: Eye 5/8in
Extended Length (MM): 754.5
Extended Length (IN) Rounded: 30
Finish: Zinc Plated
Boot Included: Black Bellows
Rebound @0.52m/s: 2550
Collapsed Length (IN): 17.91
Extended Length (IN): 29.70
Mount Type: Eye-to-Eye
Body Design: Smooth Body (Non-Coilover)
Series: B8 5125
Collapsed Length (IN) Rounded: 18
Body Diameter (ID): 46mm
Reservoir: No
